Product Summary

The JS28F128J3D75 is designed as one kind of Numonyx embedded flash memory device that provides improved mainstream performance with enhanced security features. And the JS28F128J3D75 takes advantage of the proven manufacturing experience and is ideal for code and data applications where high density and low cost are required, such as in networking, telecommunications, digital set top boxes, audio recording, and digital imaging.

Parametrics

JS28F128J3D75 absolute maximum ratings: (1)Temperature under Bias Expanded (TA, Ambient):–40 to +85℃;(2)Storage Temperature: -65 to +125℃;(3)VCC Voltage: -2.0 to +5.6V;(4)VCCQ:–2.0 to +5.6V;(5)Voltage on any input/output signal (except VCC, VCCQ): -2.0 to VCCQ(max)+2.0V;(6)ISH Output Short Circuit Current: 100 mA.

Features

JS28F128J3D75 features: (1)Enhanced security options for code protection; (2)128-bit Protection Register; (3)64-bit Unique device identifier; (4)64-bit User-programmable OTP cells; (5)Absolute protection with VPEN = GND; (6)Individual block locking; (7)Block erase/program lockout during power transitions; (8)Operating temperature: -40 ℃ to +85 ℃; (9)100K Minimum erase cycles per block; (10)0.13 μm ETOX VIII Process.

Diagrams

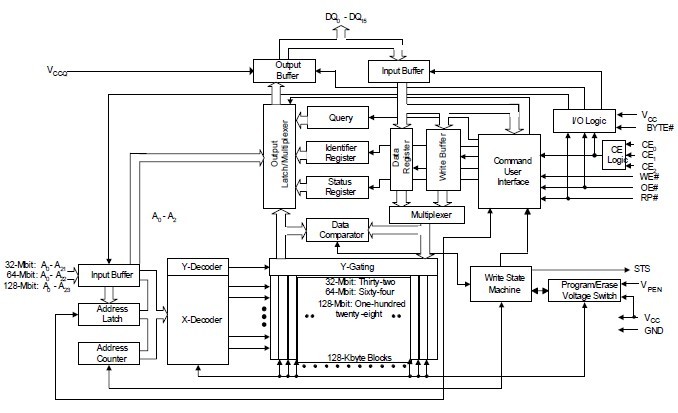

JS28F128J3D75 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JS28F128J3D75
JS28F128J3D75
Other

Data Sheet
Negotiable
JS28F128J3D75A
JS28F128J3D75A

IC FLASH 128MBIT 75NS 56TSOP
Data Sheet
Negotiable
JS28F128J3D75B
JS28F128J3D75B

IC FLASH 128MBIT 75NS 56TSOP
Data Sheet
Negotiable
