KA5M02659RN, Power Switch(FPS), Fairchild Semiconductor, 650V, 68mJ, 8-DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: KA5M02659RN

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:KA5M02659RN
US $0.10 - 1.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

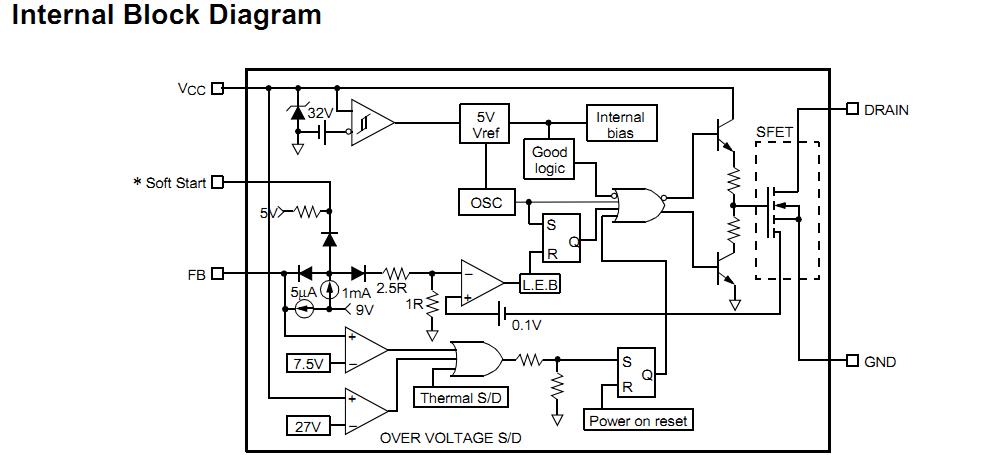

Product Summary

The KA5M02659RN is a Power Switch(FPS) product. The device is specially designed for an off-line SMPS with minimal external components. The KA5M02659RN consists of high voltage power SenseFET and current mode PWM IC. Included PWM controller features integrated fixed oscillator, under voltage lock out, leading edge blanking, optimized gate turn-on/turn-off driver, thermal shut down protection, over voltage protection, and temperature compensated precision current sources for loop compensation and fault protection circuitry-compared to discrete MOSFET and controller or RCC switching converter solution. The KA5M02659RN can reduce total component count, design size, weight and at the same time increase efficiency, productivity, and system reliability. The KA5M02659RN has a basic platform well suited for cost-effective design in either a flyback converter or a forward converter.

Parametrics

KA5M02659RN absolute maximum ratings: (1)rain-Gate Voltage (RGS=1MΩ), VDGR: 650 V; (2)Gate-Source (GND) Voltage, VGS: ±30 V; (3)Drain Current Pulsed, IDM: 8.0 ADC; (4)Continuous Drain Current (TC=25℃), ID: 2.0 ADC; (5)Continuous Drain Current (TC=100℃), ID: 1.3 ADC; (6)Single Pulsed Avalanche Energy, EAS: 68 mJ; (7)Maximum Supply Voltage, VCC,MAX: 30 V; (8)Analog Input Voltage Range, VFB: -0.3 to VSD V; (9)Total Power Dissipation, PD: 42 W; (10)Operating Junction Temperature, TJ: +160℃; (11)Operating Ambient Temperature, TA: -25 to +85℃; (12)Storage Temperature Range, TSTG: -55 to +150℃.

Features

KA5M02659RN features: (1)Precision Fixed Operating Frequency (100/67/50kHz); (2) (Typ. 100uA); (3)Pulse by Pulse Current Limiting; (4)Over Load Protection; (5)Over Voltage Protection (Min. 25V); (6)Internal Thermal Shutdown Function; (7)Under Voltage Lockout; (8)Internal High Voltage Sense FET; (9)Auto-Restart Mode.
