Product Summary

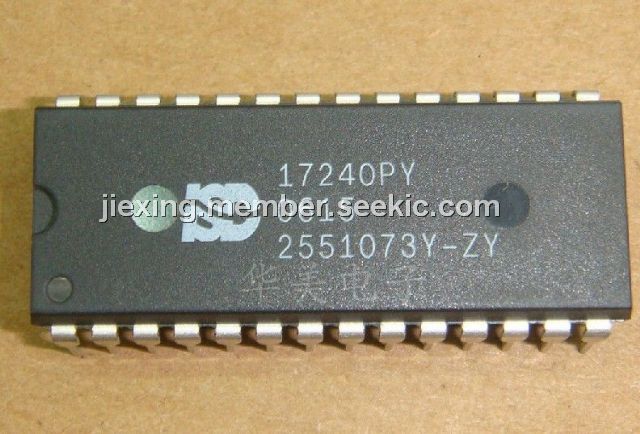

The ISD17240PY is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of ISD17240PY can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4V to 5.5V to ensure that the ISD17240PY is optimized for a wide range of battery or line-powered applications.

Parametrics

ISD17240PY absolute maximum ratings: (1)Junction temperature: 1500℃; (2)Storage temperature range: -650℃ to +1500℃; (3)Voltage Applied to any pads: VSS-0.3V to VCC+0.3V; (4)Power supply voltage to ground potential: -0.3V to +7.0V.

Features

ISD17240PY features: (1)Integrated message management systems for single-chip, push-button applications; (2)Selectable sampling frequency controlled by an external oscillator resistor; (3)Selectable message duration; (4)Message and operation indicators; (5)Dual operating modes; (6)Two individual input channels; (7)Dual output channels.

Diagrams

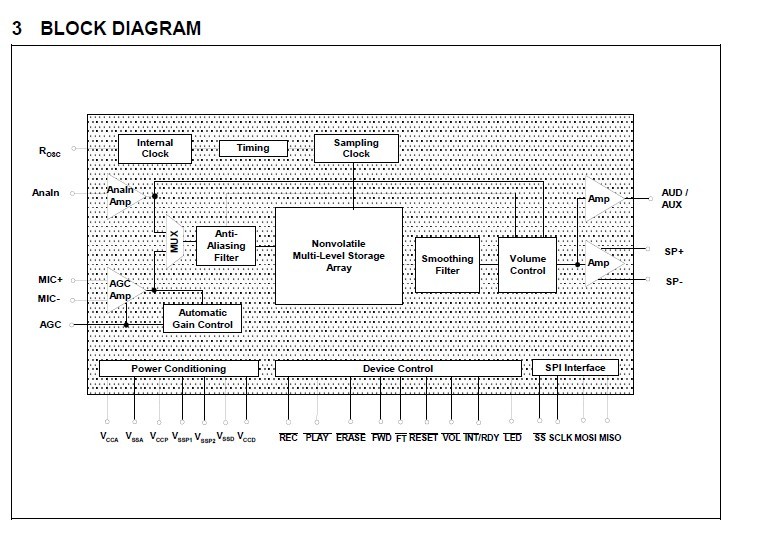

ISD17240PY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISD17240PY
ISD17240PY

IC VOICE REC/PLAY 240SEC 28-DIP
Data Sheet
0-1: $6.66
1-10: $6.05
10-100: $5.15
100-250: $4.69
250-500: $4.39
500-1000: $4.03
1000-2500: $3.87
2500-5000: $3.82
ISD17240PY01
ISD17240PY01

IC VOICE REC/PLAY 240SEC 28-DIP
Data Sheet
Negotiable
ISD17240PYI
ISD17240PYI

IC VOICE REC/PLAY 240SEC 28-DIP
Data Sheet
0-45: $6.17
ISD17240PYI01
ISD17240PYI01

IC VOICE REC/PLAY 240SEC 28-DIP
Data Sheet
Negotiable
