Product Summary

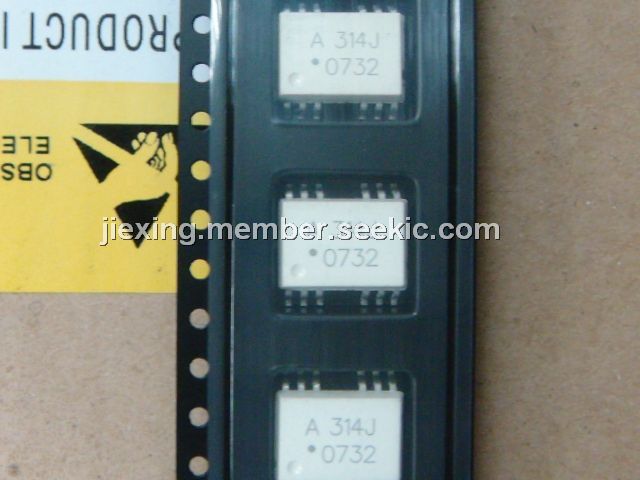

The HCPL-314J device consists of an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and current supplied by this optocoupler makes HCPL-314J ideally suited for directly driving small or medium power IGBTs.
Parametrics
HCPL-314J absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Operating Temperature TA: -40 to 100 ℃; (3)Average Input Current IF(AVG): 25 mA ; (4)Peak Transient Input Current IF(TRAN): 1.0 A (<1 μs pulse width, 300pps); (5)Reverse Input Voltage VR: 5 V; (6)High Peak Output Current IOH(PEAK): 0.6 A; (7)Low Peak Output Current IOL(PEAK): 0.6 A; (8)Supply Voltage VCC - VEE: -0.5 to 35 V; (9)Output Voltage VO(PEAK): -0.5 to VCC V; (10)Output Power Dissipation PO: 260 mW; (11)Input Power Dissipation PI: 105 mW.
Features
HCPL-314J features: (1)0.6 A maximum peak output current; (2)0.4 A minimum peak output current; (3)High speed response:; (4)0.7 μS max. propagation delay over temperature range; (5)Ultra high CMR: min. 25 kV/μS at VCM = 1.5 kV; (6)Bootstrappable supply current: max. 3 mA; (7)Wide operating temperature range: -40℃ to 100℃; (8)Wide VCC operating range: 10 V to 30 V over temperature range; (9)Available in DIP8 (single) and SO16 (dual) package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-314J |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J#500 |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J-000E |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
|
HCPL-314J-500E |
Avago Technologies |
High Speed Optocouplers 0.4A IGBT Gate Drive |
Data Sheet |
|
|
||||||||||||
