Product Summary
The ICS341MPLF is a low cost, single-output, field programmable clock synthesizer. The ICS341MPLF can generate an output frequency from 250 kHz to 200 MHz and may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI). The ICS341MPLF is also available in factory programmed custom versions for high-volume applications.
Parametrics
ICS341MPLF absolute maximum ratings: (1)Supply Voltage, VDD Referenced to GND: -0.5 to 7 V; (2)Inputs Referenced to GND: -0.5 VDD+ 0.5 V; (3)Clock Outputs Referenced to GND: -0.5 VDD+ 0.5 V; (4)Storage Temperature: -65 to 150 ℃; (5)Soldering Temperature Max 10 seconds: 260 ℃; (6)Junction Temperature: 125 ℃.
Features
ICS341MPLF features: (1)8-pin SOIC package; (2)Highly accurate frequency generation; (3)Output clock frequencies up to 200 MHz; (4)Four ROM locations for frequency and spread selection; (5)Input crystal frequency from 5 to 27 MHz; (6)Input clock frequency from 2 to 50 MHz; (7)Operating voltage of 3.3 V; (8)Advanced, low-power CMOS process; (9)Available in Pb (lead) free packaging.

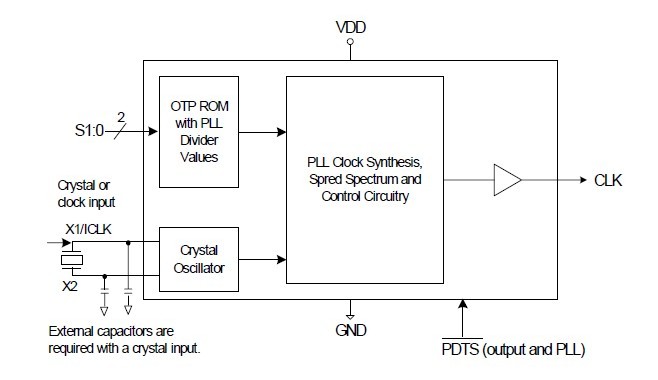

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICS341MPLF |
|
IC VERSACLOCK SYNTHESIZER 8-SOIC |
Data Sheet |
|
|
||||||
|
ICS341MPLFT |
|
IC VERSACLOCK SYNTHESIZER 8-SOIC |
Data Sheet |
|
|
||||||
