Product Summary
The ISD4004-08MSY is designed as one member of the ISD4004 series which are single-chip voice record/playback devices to provide high quality, 3-volt, single-chip record/playback solutions for 8- to 16-minute messaging applications which are ideal for cellular phones and other portable products.
Parametrics
ISD4004-08MSY absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65℃ to +150℃; (3)Voltage applied to any pin: (VSS –0.3V) to (VCC +0.3V); (4)Voltage applied to any pin (Input current limited to ±20mA): (VSS –1.0V) to (VCC +1.0V); (5)Voltage applied to MOSI, SCLK, and SS pins (Input current limited to ±20mA): (VSS –1.0V) to 5.5V; (6)Lead temperature (soldering – 10 seconds): 300℃; (7)VCC – VSS: -0.3V to +7.0V.
Features
ISD4004-08MSY features: (1)Single-chip voice record/playback solution; (2)Single 3 volt supply; (3)Low-power consumption; (4)Duration: 4, 5, 6, and 8 minutes; (5)High-quality, natural voice/audio reproduction; (6)AutoMute feature provides background noise attenuation; (7)No algorithm development required; (8)Microcontroller SPI or MicrowireSerial Interface; (9)Fully addressable to handle multiple messages; (10)Non-volatile message storage; (11)100K record cycles (typical); (12)100-year message retention (typical); (13)On-chip oscillator; (14)Power-down feature to reduce power consumption; (15)Available in die form, PDIP, SOIC, and TSOP; (16)Packaged types: Leaded and Lead-Free.

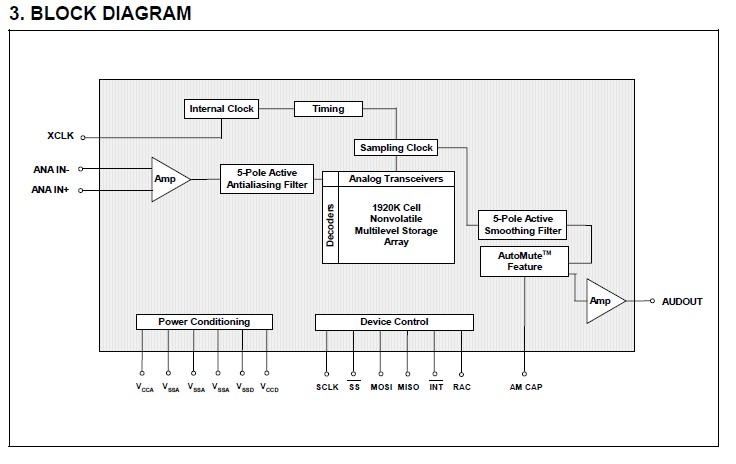

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISD4004-08MSY |
|
IC VOICE REC/PLAY 8MIN 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
ISD4004-08MSYI |
|
IC VOICE REC/PLAY 8MIN 28-SOIC |
Data Sheet |
|
|
||||||||||||||||||||
