Product Summary

The DS18S20+ is a Digital Thermometer. It provides 9–bit temperature readings which indicate the temperature of the device. Information is sent to/from the DS18S20+ over a 1–Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS18S20+. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source. Applications of the DS18S20+ include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.

Parametrics

DS18S20+ absolute maximum ratings: (1)Supply Voltage:3.0V to 5.5V; (2)Data Pin:-0.3V to VDD; (3)Logic 1:2.2V to VDD+0.3V; (4)Logic 0:-0.3V to +0.8V.

Features

DS18S20+ features: (1)Unique 1–Wire interface requires only one port pin for communication; (2)Multidrop capability simplifies distributed temperature sensing applications; (3)Requires no external components; (4)Can be powered from data line.Power supply range is 3.0V to 5.5V; (5)Zero standby power required; (6)Measures temperatures from –55℃ to +125℃.; (7)±0.5℃ accuracy from –10℃ to +85℃; (8)Temperature is read as a 9–bit digital value; (9)Converts temperature to digital word in 750 ms (max.).

Diagrams

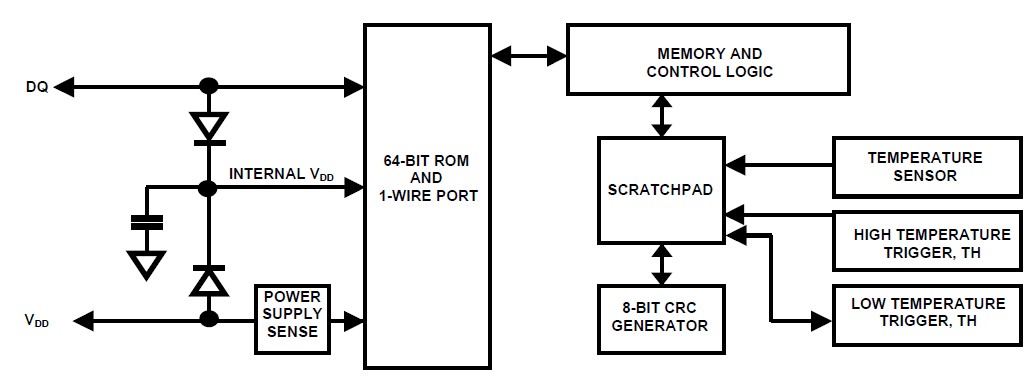

DS18S20+ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

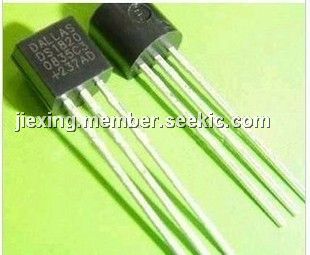

DS18S20+
DS18S20+
Maxim Integrated Products
Board Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr
Data Sheet
0-1: $3.40
1-25: $2.28
25-50: $1.65
50-100: $1.63
DS18S20+PAR
DS18S20+PAR
Maxim Integrated Products
Board Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr
Data Sheet
0-1: $3.42
1-25: $2.28
25-50: $1.65
50-100: $1.63
DS18S20+T&R
DS18S20+T&R
Maxim Integrated Products
Board Mount Temperature Sensors Prgmble Resolution 1-Wire Parasite Pwr
Data Sheet
0-1: $3.11
1-25: $2.35
25-50: $2.09
50-100: $2.05
