Product Summary

The ISD4003-04MPY ChipCorder Product provides highquality, 3-volt, single-chip Record/Playback solutions for 4- to 8-minute messaging applications which are ideal for cellular phones and other portable products. The CMOS-based ISD4003-04MPY includes an on-chip oscillator, antialiasing filter, smoothing filter, AutoMute feature, audio amplifier, and high density, multilevel Flash storage array. The ISD4003-04MPY is designed to be used in a microprocessor-or microcontroller-based system. Address and control are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count.

Parametrics

ISD4003-04MPY absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65℃ to 150℃; (3)Voltage applied to any pin: Vss-0.3V to Vcc+0.3V; (4)Voltage applied to any pin(Input current limited to ±20mA: Vss-1.0V to Vcc+1.0V; (5)Voltage applied to MOSI, SCLK, INT, RAC and SS pins: Vss-1.0V to 5.5V; (6)Lead temperature: 300℃.

Features

ISD4003-04MPY features: (1)Single-chip voice Record/Playback solution; (2)Single +3 volt supply; (3)Low power consumption; (4)Operating current: ICC Play = 15 mA (typical); ICC Rec = 25 mA (typical); Standby current: 1μA (typical); (5)Single-chip durations of 4, 5, 6, and 8 minutes; (6)High-quality, natural voice/audio reproduction; (7)AutoMute feature provides background noise attenuation during periods of silence; (8)No algorithm development required; (9)Microcontroller SPI or Microwire Serial Interface; (10)Fully addressable to handle multiple messages; (11)Nonvolatile message storage; (12)Power consumption controlled by SPI or Microwire control register; (13)100-year message retention (typical); (14)100K record cycles (typical); (15)On-chip clock source; (16)Available in die form, PDIP, SOIC, TSOP, and chip scale packaging (CSP); (17)Extended temperature (-20℃ to + 70℃) and industrial temperature (-40℃ to +85℃) versions available.

Diagrams

ISD4003-04MPY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

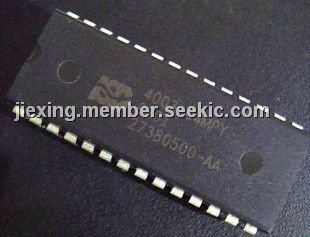

ISD4003-04MPY
ISD4003-04MPY


IC VOICE REC/PLAY 4MIN 28-DIP

Data Sheet

0-1: $6.85
1-10: $6.22
10-100: $5.29
100-250: $4.82
250-500: $4.51
500-1000: $4.14
1000-2500: $3.98
2500-5000: $3.93
