Product Summary

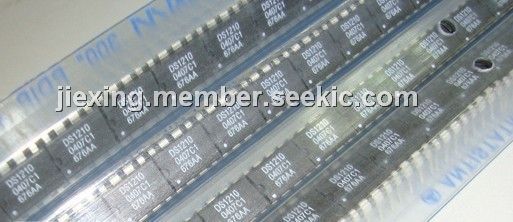

The DS1210 is a Nonvolatile Controller Chip. The device is a CMOS circuit which solves the application problem of converting CMOS RAM into nonvolatile memory. Incoming power is monitored for an out-of-tolerance condition. When such a condition is detected, chip enable of the DS1210 is inhibited to accomplish write protection and the battery is switched on to supply the RAM with uninterrupted power. Special circuitry uses a low-leakage CMOS process which affords precise voltage detection at extremely low battery consumption.The 8-pin DIP package keeps PC board real estate requirements to a minimum. By combining the DS1210 Nonvolatile Controller Chip with a CMOS memory and batteries, nonvolatile RAM operation can be achieved.

Parametrics

DS1210 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0 to 70℃; (3)Storage Temperature: -55 to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1210 features: (1)Converts CMOS RAMs into nonvolatile memories; (2)Unconditionally write protects when VCC is out of tolerance; (3)Automatically switches to battery when power-fail occurs; (4)Space saving 8-pin DIP; (5)Consumes less than 100 nA of battery current; (6)Tests battery condition on power up; (7)Provides for redundant batteries; (8)Optional 5% or 10% power-fail detection; (9)Low forward voltage drop on the VCC switch; (10)Optional 16-pin SOIC surface mount package; (11)Optional industrial temperature range of -40 to +85℃.

Diagrams

DS1210 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS1210
DS1210
Maxim Integrated Products
Memory Controllers
Data Sheet
Negotiable
DS1210N
DS1210N
Maxim Integrated Products
Memory Controllers
Data Sheet
Negotiable
DS1210N+
DS1210N+
Maxim Integrated Products
Memory Controllers Controller Chip Nonvolatile
Data Sheet
0-1: $3.84
1-25: $2.58
25-50: $1.87
50-100: $1.85
DS1210S
DS1210S
Maxim Integrated Products
Memory Controllers
Data Sheet
Negotiable
DS1210S/T&R
DS1210S/T&R
Maxim Integrated Products
Memory Controllers
Data Sheet
Negotiable
DS1210S/T&R/
DS1210S/T&R/
Maxim Integrated Products
Memory Controllers
Data Sheet
Negotiable
DS1210S+
DS1210S+
Maxim Integrated Products
Memory Controllers Controller Chip Nonvolatile
Data Sheet
0-1: $3.52
1-25: $2.36
25-50: $1.72
50-100: $1.70
DS1210S+TRL
DS1210S+TRL
Maxim Integrated Products
Memory Controllers Controller Chip Nonvolatile
Data Sheet
0-795: $1.49
795-1000: $1.49
