Product Summary

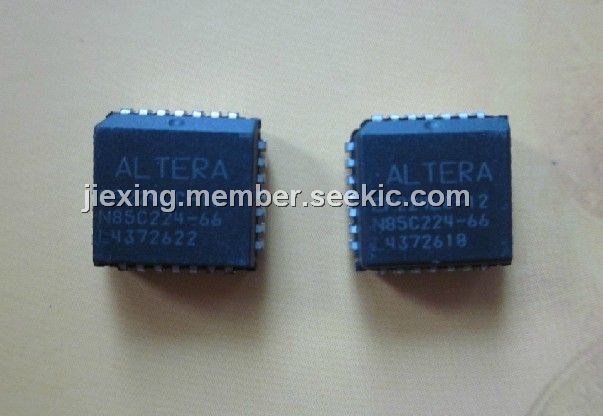

The EP224LC-12 is a High-performance, low-power Erasable Programmable Logic Device (EPLD) with 8 macrocells. The EP224LC-12 features a flexible I/O architecture and implement 150 usable (300 available) gates of custom user logic functions. The EP224LC-12 can be used as upgrades for high-speed bipolar programmable logic devices (PLDs) or for 74-series LS and CMOS (SSI and MSI) logic devices in high-performance microcomputer systems.

Parametrics

EP224LC-12 absolute maximum ratings: (1)Supply voltage:–2.0 to 7.0V; (2)DC input voltage:–0.5 to VCC + 0.5V; (3)Storage temperature:–65 to 150℃; (4)Ambient temperature:–10 to 85℃.

Features

EP224LC-12 features: (1)Replacement or upgrade for 16V8/20V8 PAL and GAL devices; (2)Up to 18 inputs (10 dedicated inputs) in EP220, 22 inputs (14 dedicated inputs) in EP224; up to 8 outputs in both EP220 and EP224; (3)Macrocells independently programmable for both registered and combinatorial logic; (4)Programmable inversion control supporting active-high or active-low outputs; (5)Low power consumption; (6)Programmable Security Bit for total protection of proprietary designs; (7)Low output skew for Clock driver applications ; (8)100% generically tested to provide 100% programming yield; (9)Software and programming support from Altera and a wide range of third-party tools.

Diagrams

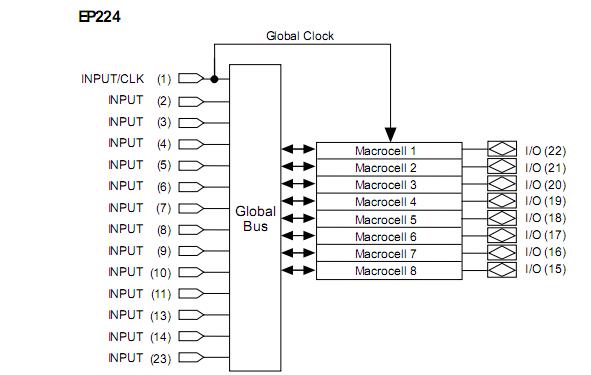

EP224LC-12 block diagram
