DS1225Y-150+

64K Nonvolatile SRAM, DIP-28, Unlimited write cycles, 150NS, –0.3V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~10.00

PartNumber:: DS1225Y-150+

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:DS1225Y-150+
US $0.10 - 10.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

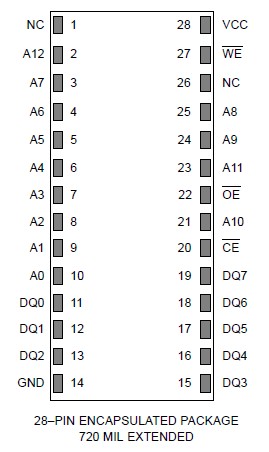

The DS1225Y-150+ 64K Nonvolatile SRAM is a 65,536–bit, fully static, nonvolatile RAM organized as 8192 words by 8 bits. Each NV SRAM has a self–contained lithium energy source and control circuitry which constantly monitors VCC for an out–of–tolerance condition. The DS1225Y-150+ can be used in place of existing 8K × 8 SRAMs directly conforming to the popular bytewide 28–pin DIP standard. The DS1225Y-150+ also matches the pinout of the 2764 EPROM or the 2864 EEPROM, allowing direct substitution while enhancing performance.

Parametrics

DS1225Y-150+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: –0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃; –40℃ to +85℃ for IND parts; (3)Storage Temperature: –40℃ to +70℃; –40℃ to +85℃ for IND parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1225Y-150+ features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Directly replaces 8K × 8 volatile static RAM or EEPROM; (4)Unlimited write cycles; (5)Low-power CMOS; (6)JEDEC standard 28-pin DIP package; (7)Read and write access times as fast as 150 ns; (8)Full ±10% operating range; (9)Optional industrial temperature range of -40℃ to +85℃, designated IND.
