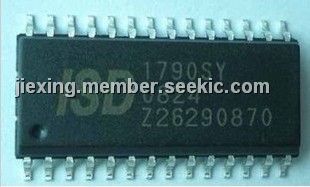

ISD1790SY

Multi-Message, Voice Record & Playback Device, 90-sec, SOP-28, -0.3V to +7.0V, Dual operating modes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: ISD1790SY

Brand:: Winbond - Winbond | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:ISD1790SY
US $0.10 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

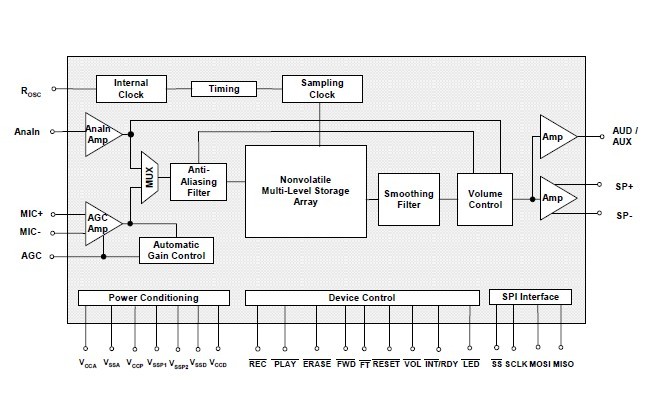

The ISD1790SY is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The ISD1790SY message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of the ISD1790SY can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD1790SY is optimized for a wide range of battery or line-powered applications.

Parametrics

ISD1790SY absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65℃ to +150℃; (3)Voltage Applied to any pads: (VSS - 0.3V) to (VCC + 0.3V); (4)Power supply voltage to ground potential: -0.3V to +7.0V.

Features

ISD1790SY features: (1)Integrated message management systems for single-chip, push button applications; (2)Selectable sampling frequency controlled by an external oscillator resistor; (3)Message and operation indicators: Four customizable Sound Effects (SEs) for audible indication; Optional vAlert (voiceAlert) to indicate the presence of new messages; LED: stay on during recording, blink during playback, forward and erase operations ; (4)Dual operating modes ; (5)Two individual input channels: MIC+/MIC-: differential microphone inputs with AGC (Automatic Gain Control); AnaIn: single-ended auxiliary analog input for recording or feed-through ; (6)Dual output channels ; (7)High-quality, natural voice and audio reproduction; (8)2.4V to 5.5V operating voltage; (9)100-year message retention (typical); (10)100,000 record cycles (typical).
