CY7C64713-100AXC

Product Summary

The CY7C64713-100AXC is a full-speed USB peripheral controller. By integrating the USB transceiver, serial interface engine (SIE), enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages. Because the CY7C64713-100AXC incorporates the USB transceiver, the EZ-USB FX1 is more economical, providing a smaller footprint solution than USB SIE or external transceiver implementations. The applications of the CY7C64713-100AXC include: DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Home PNA, Wireless LAN, MP3 players, Networking.

Parametrics

CY7C64713-100AXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: –0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High-Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 235 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

CY7C64713-100AXC features: (1)Single-chip integrated USB transceiver, SIE, and enhanced 8051 microprocessor; (2)Draws no more than 65 mA in any mode making the FX1 suitable for bus powered applications; (3)16 KBytes of on-chip Code/Data RAM; (4)Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints-Buffering options: double, triple, and quad; (5)Additional programmable (BULK/INTERRUPT) 64-byte endpoint; (6)8- or 16-bit external data interface; (7)Smart Media Standard ECC generation; (8)3.3V operation with 5V tolerant inputs; (9)Smart SIE; (10)Vectored USB interrupts; (11)Separate data buffers for the Setup and DATA portions of a CONTROL transfer; (12)Integrated I2C controller, runs at 100 or 400 KHz; (13)48-MHz, 24-MHz, or 12-MHz 8051 operation.

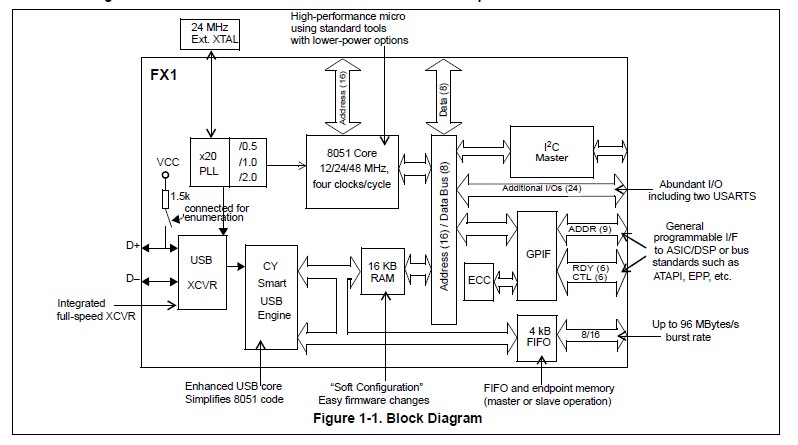

Diagrams
