Product Summary

The 2SC5200 is a silicon NPN triple diffused type transistor from TOSHIBA. It is widely used in power amplifier application. It is also recommend for 100W high fidelity audio frequency amplifier output stage applications.

Parametrics

2SC5200 absolute maximum ratings: (1)Collector-base voltage, VCBO: 230V; (2)Collector-emitter voltage, VCEO: 1300V; (3)Emitter-base voltage, VEBO: 5V; (4)Collector current, IC: 15A; (5)Base current, IB: 1.5A; (6)Collector power dissipation(Tc = 25℃), PC: 150W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SC5200 features: (1)High breakdown voltage: VCEO=230V (min); (2)Complementary to 2SA1943; (3)Suitable for use in 100W high fidelity audio amplifier’s output stage.

Diagrams

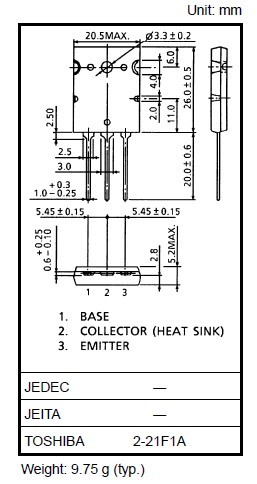

2SC5200 diagram
