Product Summary
The 14-bit ICSSSTV16857CG is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O levels, except for the LVCMOS RESET# input. ICSSSTV16857CG supports low-power standby operation. A logic level “Low” at RESET# assures that all internal registers and outputs (Q) are reset to the logic “Low” state, and all input receivers, data (D) and clock (CLK/CLK#) are switched off.
Parametrics
ICSSSTV16857C absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Supply Voltage: -0.5 to 3.6V; (3)Input Voltage: -0.5 to VDD +0.5; (4)Output Voltage: -0.5 to VDDQ +0.5; (5)Input Clamp Current: ±50 mA; (6)Output Clamp Current: ±50 mA; (7)Continuous Output Current: ±50 mA; (8)VDD, VDDQ or GND Current/Pin: ±100 mA; (9)Package Thermal Impedance: 55℃/W.
Features
ICSSSTV16857C features: (1)Differential clock signal; (2)Meets SSTL_2 signal data; (3)Supports SSTL_2 class I & II specifications; (4)Low-voltage operation: - VDD = 2.3V to 2.7V; (5)48 pin TSSOP package.

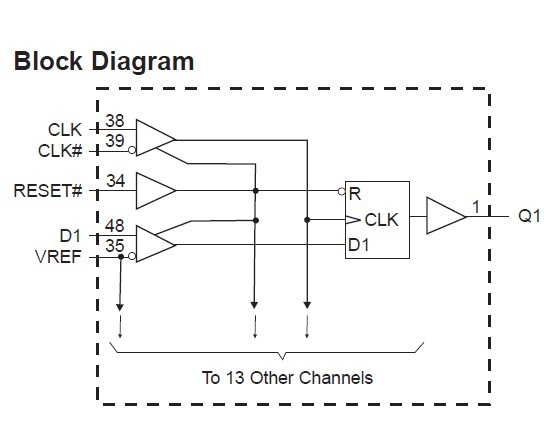

Diagrams
 |
