MC14020BDR2G

14Bit Binary Counter, SOP-16, Fully Static Operation, -0.5 to +18.0 V, 500 mW Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: MC14020BDR2G

Brand:: ON SEMICONDUCTOR - ONS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-16

From Other Seller

Part Number:MC14020BDR2G
US $0.10 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

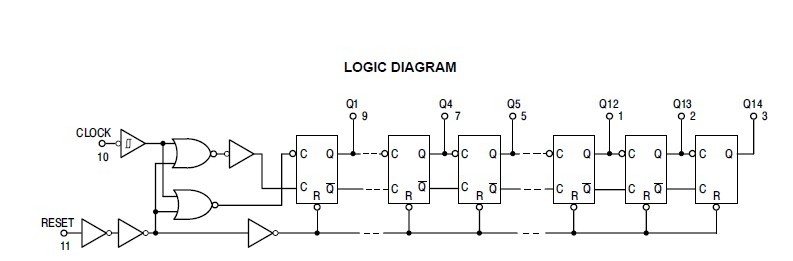

The MC14020BDR2G binary counter is constructed with MOS P.Channel and N.Channel enhancement mode devices in a single monolithic structure. This part is designed with an input wave shaping circuit and 14 stages of ripple.carry binary counter. The MC14020BDR2G advances the count on the negative.going edge of the clock pulse. Applications include time delay circuits, counter controls, and frequency.dividing circuits.

Parametrics

MC14020BDR2G absolute maximum ratings: (1)VDD DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout Input or Output Voltage Range (DC or Transient): -0.5 to VDD + 0.5 V; (3)Iin, Iout Input or Output Current (DC or Transient) per Pin: ±10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)TA Ambient Temperature Range: -55 to +125 ℃; (6)Tstg Storage Temperature Range: -65 to +150 ℃; (7)TL Lead Temperature, (8.Second Soldering): 260 ℃.

Features

MC14020BDR2G features: (1)Fully Static Operation; (2)Diode Protection on All Inputs; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; (5)Buffered Outputs Available from stages 1 and 4 thru 14; (6)Common Reset Line; (7)Pin-for-Pin Replacement for CD4020B; (8)Pb-Free Packages are Available.
