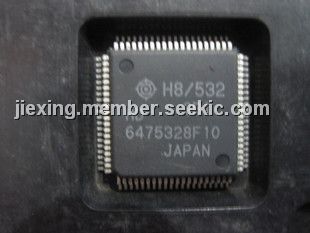

HD6475328F10

high-speed central processing unit, eight 16-bit general registers, QFP-80, –0.3 to +7.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~20.00

PartNumber:: HD6475328F10

Brand:: Hitachi Metals, Ltd - Metals | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-07

From Other Seller

Part Number:HD6475328F10
US $2.00 - 20.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HD6475328F10 has the H8/500 Family CPU: a high-speed central processing unit designed for realtime control of a wide range of medium-scale office and industrial equipment. Its Hitachioriginal architecture features eight 16-bit general registers, internal 16-bit data paths, and an optimized instruction set.

Parametrics

HD6475328F10 absolute maximum ratings: (1)Supply voltage: –0.3 to +7.0 V; (2)Programming voltage: –0.3 to +13.5 V; (3)Input voltage (except Port 8): –0.3 to VCC + 0.3 V, (Port 8): –0.3 to AVCC + 0.3 V; (4)Analog supply voltage: –0.3 to +7.0 V; (5)Analog input voltage: –0.3 to AVCC + 0.3 V; (6)Operating temperature: Regular specifications: –20 to +75 ℃, Wide-range specifications: –40 to +85 ℃; (7)Storage temperature: –55 to +125 ℃.

Features

HD6475328F10 features: (1)General-register machine: Eight 16-bit general registers, Five 8-bit and two 16-bit control registers; (2)High speed: Maximum clock rate: 10MHz (oscillator frequency: 20MHz) Expanded operating modes supporting external memory, Minimum mode: up to 64K-byte address space, Maximum mode: up to 1M-byte address space; (3)Highly orthogonal instruction set: Addressing modes and data size can be specified independently for each instruction; (4)1.5 Addressing modes: Register-register operations, Register-memory operations; (5)Instruction set optimized for C language: Special short formats for frequently-used instructions and addressing modes.
