Product Summary
The ICS952623CG is a programmable timing control hub for next gen P4 processor. The ICS952623CG follows Intel CK409 Yellow Cover specification. This clock synthesizer provides a single chip solution for next generation P4 Intel processors and Intel chipsets. ICS952623CG is driven with a 14.318MHz crystal. It generates CPU outputs up to 200MHz. It also provides a tight ppm accuracy output for Serial ATA support.
Parametrics
ICS952623CG absolute maximum ratings: (1)VDD_A 3.3V Core Supply Voltage: VDD + 0.5V; (2)VDD_In 3.3V Logic Input Supply Voltage: GND - 0.5 to VDD + 0.5V; (3)Ts Storage Temperature: -65 to 150 ℃; (4)Tambient Ambient Operating Temp: 0 to 70 ℃; (5)Tcase Case Temperature: 115 ℃; (6)ESD prot Input ESD protection human body model: 2000 V.
Features
ICS952623CG features: (1)Supports tight ppm accuracy clocks for Serial-ATA; (2)Supports spread spectrum modulation, 0 to -0.5%; (3)down spread and +/- 0.25% center spread; (4)Supports CPU clks up to 400MHz in test mode; (5)Uses external 14.318MHz crystal; (6)Supports undriven differential CPU, SRC pair in PD#and CPU_STOP# for power management.

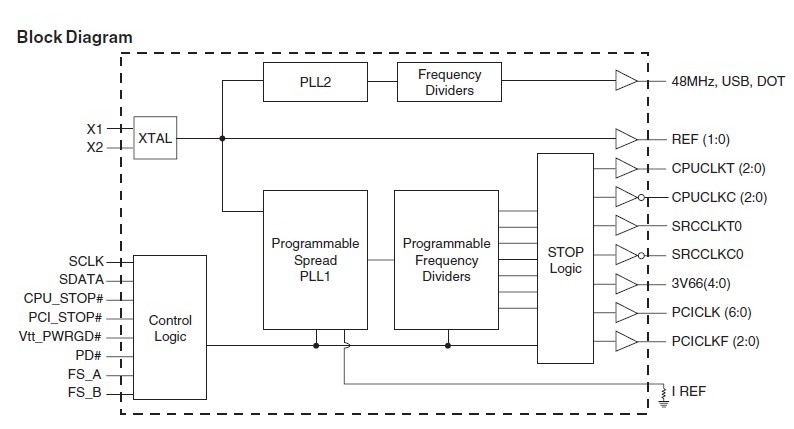

Diagrams
 |
