HCPL-M456

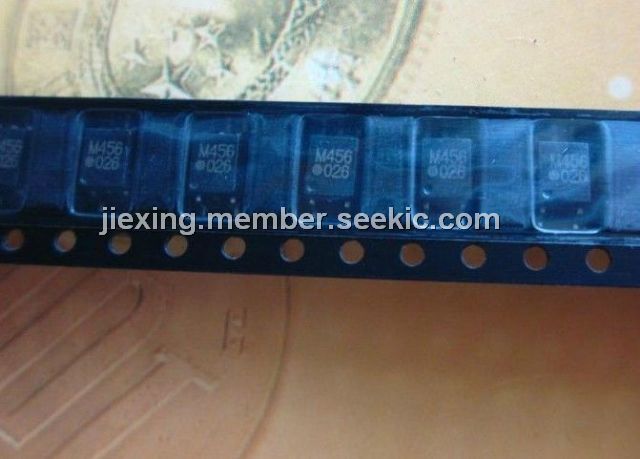

GaAsP LED, high gain photo detector, reduced switching dead time, SOP-5, 1MBD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~5.00

PartNumber:: HCPL-M456

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-07

From Other Seller

Part Number:HCPL-M456
US $0.10 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL-M456 is a GaAsP LED. The HCPL-M456 is optically coupled to an integrated high gain photo detector. Minimized propa-gation delay difference between devices make the HCPL-M456 excellent solution for improving inverter efficiency through reduced switching dead time. An on chip 20 kW output pull-up resistor can be enabled by shorting output pins 6 and 7, thus eliminating the need for an external pull-up resistor in common IPM applications.

Parametrics

HCPL-M456 absolute maximum ratings: (1)Storage Temperature: -55 to 125 ℃; (2)Operating Temperature: -40 to 100 ℃; (3)Average Input Current: 25 mA; (4)Peak Input Current (50% duty cycle, ≤ 1 ms pulse width): 50 mA; (5)Peak Transient Input Current (<1 ms pulse width, 300 pps): 1.0 A; (6)Reverse Input Voltage (Pin 3-2): 5 Volts; (7)Average Output Current (Pin 6): 15 mA; (8)Resistor Voltage (Pin 7): -0.5 to VCC Volts; (9)Output Voltage (Pin 6-5): -0.5 to 30 Volts; (10)Supply Voltage (Pin 8-5): -0.5 to 30 Volts; (11)Output Power Dissipation: 100 mW; (12)Total Power Dissipation: 145 mW; (13)Lead Solder Temperature: 260℃ for 10 s, 1.6 mm below seating plane.

Features

HCPL-M456 features: (1)Performance Specified for Common IPM Applications over Industrial Temperature Range: -40℃ to 100℃; (2)Fast Maximum Propagation Delays: tPHL = 400 ns, tPLH = 550 ns; (3)Minimized Pulse Width Distortion (PWD = 450 ns); (4)15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V; (5)CTR > 44% at IF = 10 mA; (6)Safety Approval.

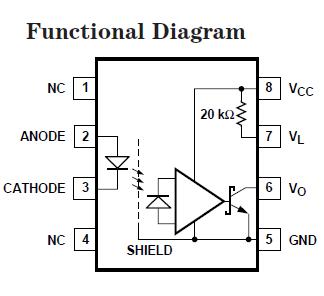

Diagrams
