DS1644-120+

32k × 8 nonvolatile static RAM, DIP-28, 120NS, PowerCap Module Board, -0.3V to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: DS1644-120+

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:DS1644-120+
US $1.00 - 10.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

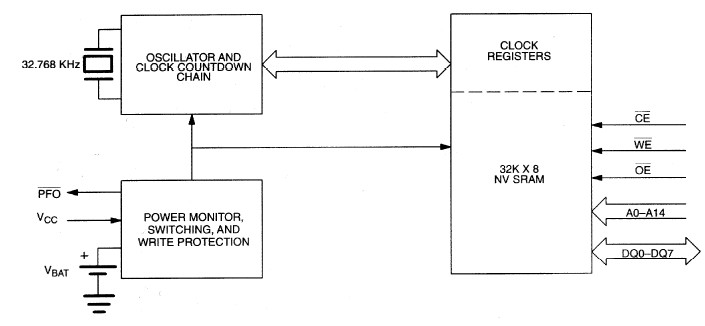

The DS1644-120+ is a 32k × 8 nonvolatile static RAM with a full function real time clock, which are both accessible in a byte-wide format. The nonvolatile timekeeping RAM is functionally equivalent to any JEDEC standard 32k × 8 SRAM. The DS1644-120+ can also be easily substituted for ROM, EPROM and EEPROM, providing read/write nonvolatility and the addition of the real time clock function. The real time clock information of the DS1644-120+ resides in the eight uppermost RAM locations. The RTC registers contain year, month, date, day, hours, minutes, and seconds data in 24-hour BCD format.

Parametrics

DS1644-120+ absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Storage Temperature Range: -40℃ to +85℃, Noncondensing; (3)Operating Temperature Range: 0℃ to +70℃, Noncondensing; (4)Lead Temperature (soldering, 10s): +260℃; (5)Soldering Temperature (reflow, PowerCap package): +260℃.

Features

DS1644-120+ features: (1)Integrated NV SRAM, Real-Time Clock, Crystal, Power-Fail Control Circuit and Lithium Energy Source; (2)Clock Registers are Accessed Identically to the Static RAM. These Registers are Resident in the Eight Top RAM Locations.; (3)Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power; (4)BCD-Coded Year, Month, Date, Day, Hours, Minutes, and Seconds with Leap Year Compensation Valid Up to 2100; (5)Power-Fail Write Protection Allows for ±10% VCC Power Supply Tolerance.
