Product Summary

The 2SC5198 is a silicon NPN triple diffused type transistor from TOSHIBA. It is widely used in power amplifier application. It is also recommend for 70W high fidelity audio frequency amplifier output stage applications.

Parametrics

2SC5198 absolute maximum ratings: (1)Collector-base voltage, VCBO: 140V; (2)Collector-emitter voltage, VCEO: 140V; (3)Emitter-base voltage, VEBO: 5V; (4)Collector current, IC: 10A; (5)Base current, IB: 1A; (6)Collector power dissipation(Tc = 25℃), PC: 100W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SC5198 features: (1)High breakdown voltage: VCEO=140V (min); (2)Complementary to 2SA1941; (3)Suitable for use in 70-W high fidelity audio amplifier’s output stage.

Diagrams

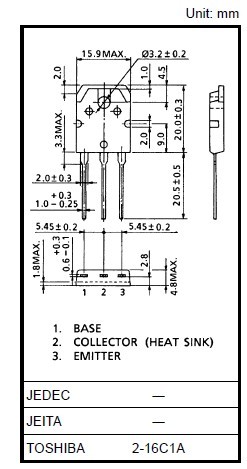

2SC5198 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

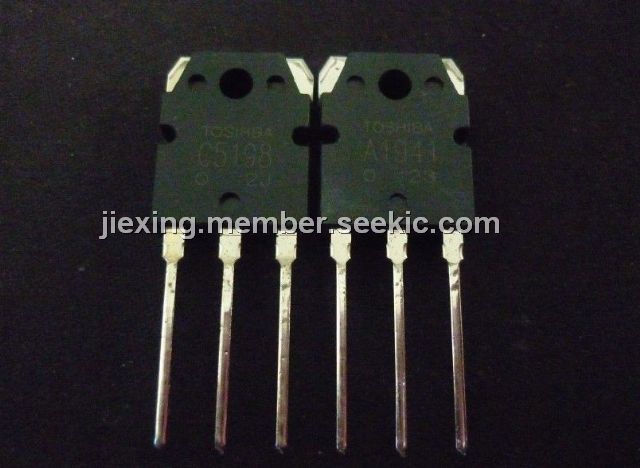

2SC5198
2SC5198
Other

Data Sheet
Negotiable
2SC5198-O(Q)
2SC5198-O(Q)
Toshiba
Transistors Bipolar (BJT) NPN VCEO 140V Ic 10A PC 100W
Data Sheet
0-2650: $0.67
2650-4000: $0.67
4000-5000: $0.62
5000-10000: $0.59
2SC5198-O(Q,T)
2SC5198-O(Q,T)
Toshiba
Transistors Bipolar (BJT) NPN VCEO 140V Ic 10A PC 100W
Data Sheet
0-1: $0.33
1-10: $0.31
10-100: $0.28
100-250: $0.28
