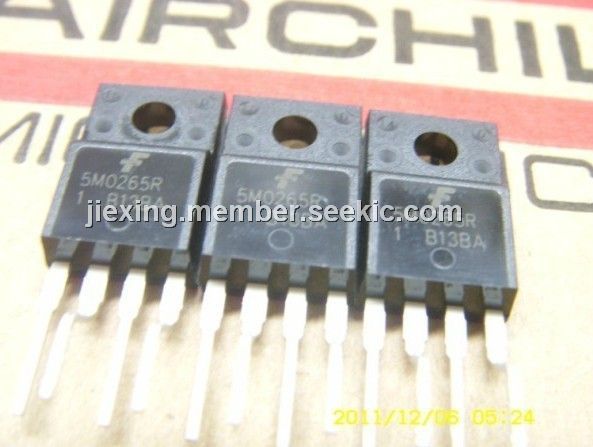

KA5M0265RYDTU

Fairchild Power Switch(FPS), TO-220, Over Load Protection, 650V, 68mJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: KA5M0265RYDTU

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jasmine's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:KA5M0265RYDTU
US $0.10 - 1.00
STK795-810

US $12.00 - 16.00 / Piece
(0) Remove
IRFP264NPBF

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The KA5M0265RYDTU is specially designed for an off-line SMPS with minimal external components. The KA5M0265RYDTU consists of high voltage power SenseFET and current mode PWM IC. Included PWM controller features integrated fixed oscillator, under voltage lock out, leading edge blanking, optimized gate turn-on/turn-off driver, thermal shut down protection, over voltage protection, and temperature compensated precision current sources for loop compensation and fault protection circuitrycompared to discrete MOSFET and controller or RCC switching converter solution. The KA5M0265RYDTU can reduce total component count, design size, weight and at the same time increase efficiency, productivity, and system reliability. KA5M0265RYDTU has a basic platform well suited for cost-effective design in either a flyback converter or a forward converter.

Parametrics

KA5M0265RYDTU absolute maximum ratings: (1)Drain-Gate Voltage (RGS=1MΩ) VDGR: 650 V; (2)Gate-Source (GND) Voltage VGS: ±30 V; (3)Drain Current Pulsed (1) IDM: 8.0 ADC; (4)Continuous Drain Current (TC=25℃) ID: 2.0 ADC; (5)Continuous Drain Current (TC=100℃) ID: 1.3 ADC; (6)Single Pulsed Avalanche Energy (2) EAS: 68 mJ; (7)Maximum Supply Voltage VCC,MAX: 30 V; (8)Analog Input Voltage Range VFB: -0.3 to VSD V; (9)Total Power Dissipation, PD: 42 W; Darting: 0.33 W/℃; (10)Operating Junction Temperature, TJ: +160 ℃; (11)Operating Ambient Temperature. TA: -25 to +85 ℃; (12)Storage Temperature Range. TSTG: -55 to +150 ℃.

Features

KA5M0265RYDTU features: (1)Precision Fixed Operating Frequency (100/67/50kHz); (2)Low Start-up Current (Typ. 100uA); (3)Pulse by Pulse Current Limiting; (4)Over Load Protection; (5)Over Voltage Protection (Min. 25V); (6)Internal Thermal Shutdown Function; (7)Under Voltage Lockout; (8)Internal High Voltage Sense FET; (9)Auto-Restart Mode.
