Product Summary
The HT7610B is a CMOS LSI chip designed for use in automatic PIR lamp control. It can operate with a 2-wire configuration for triac applications or with a 3-wire configuration for relay applications. The HT7610B offers three operating modes (ON, AUTO, OFF) which can be set through theMODE pin. The chip is equipped with operational amplifiers, a comparator, timer, a zero crossing detector, control circuit, a voltage regulator, a system oscillator, and an output timing oscillator. The applications of the HT7610B are PIR light controllers, Motion detectors, Alarm systems, Auto door bells.
Parametrics
HT7610B absolute maximum ratings: (1)Supply Voltage:-0.3V to +13V ; (2)Storage Temperature:-50℃ to 125℃; (3)Input Voltage:VSS-0.3V to VDD+0.3V ; (4)Operating Temperature:-25℃ to 70℃; (5)Zero Crossing Current:Max. 300μA.
Features
HT7610B features: (1)Operating voltage: 5V to 12V; (2)Standby current: 100μA (Typ.); (3)On-chip regulator; (4)Adjustable output duration; (5)CDS input; (6)40 second warm-up; (7)ON/AUTO/OFF selectable by MODE pin; (8)Override function; (9)Auto-reset if the ZC signal disappears over 3 seconds; (10)16-pin DIP package.

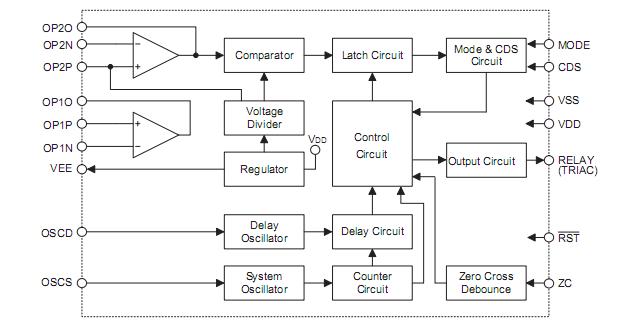

Diagrams
 |
